170HY18Z16
Internal Grinding & Milling Spindles
HOYO Technical Datasheet

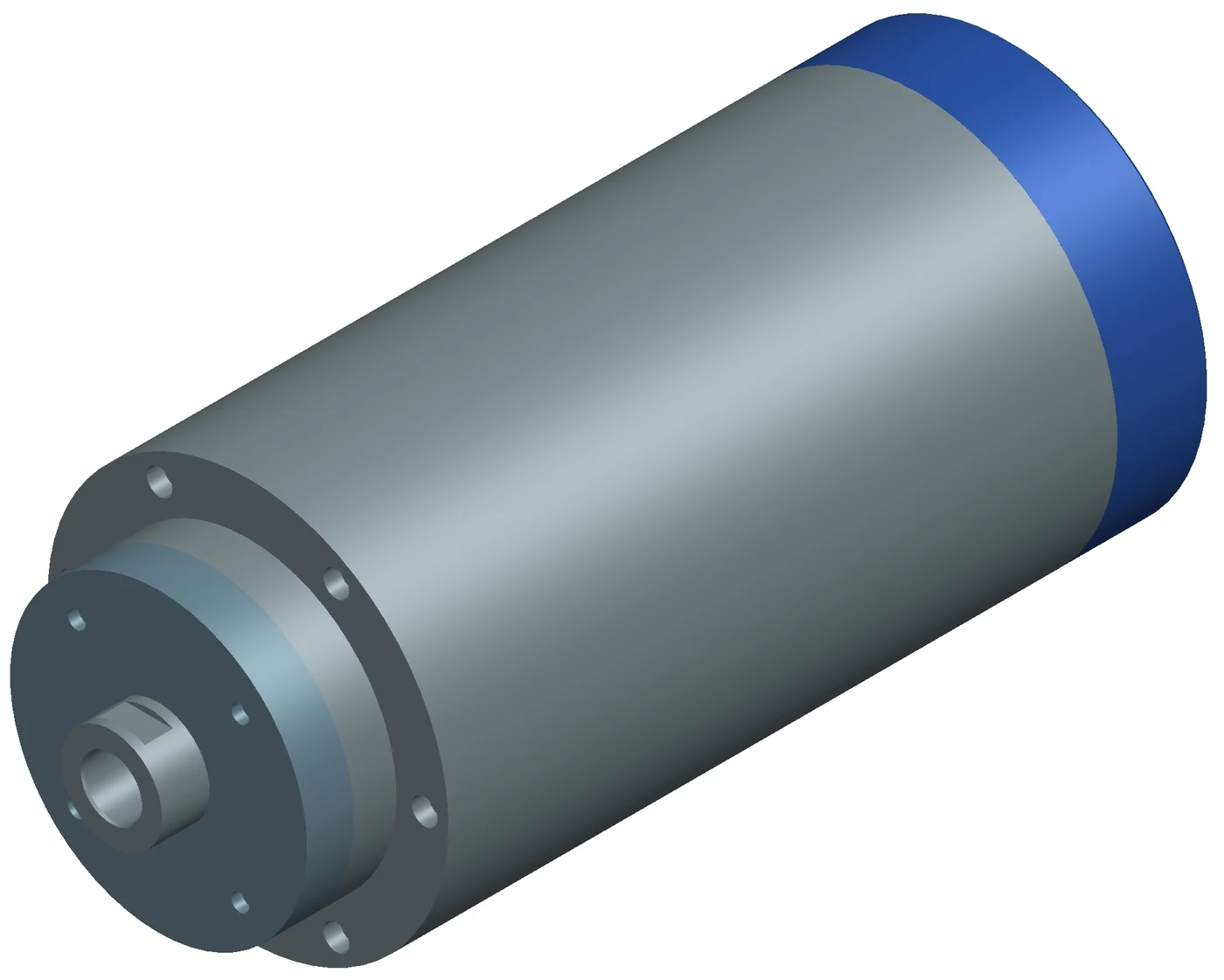

General view
Side

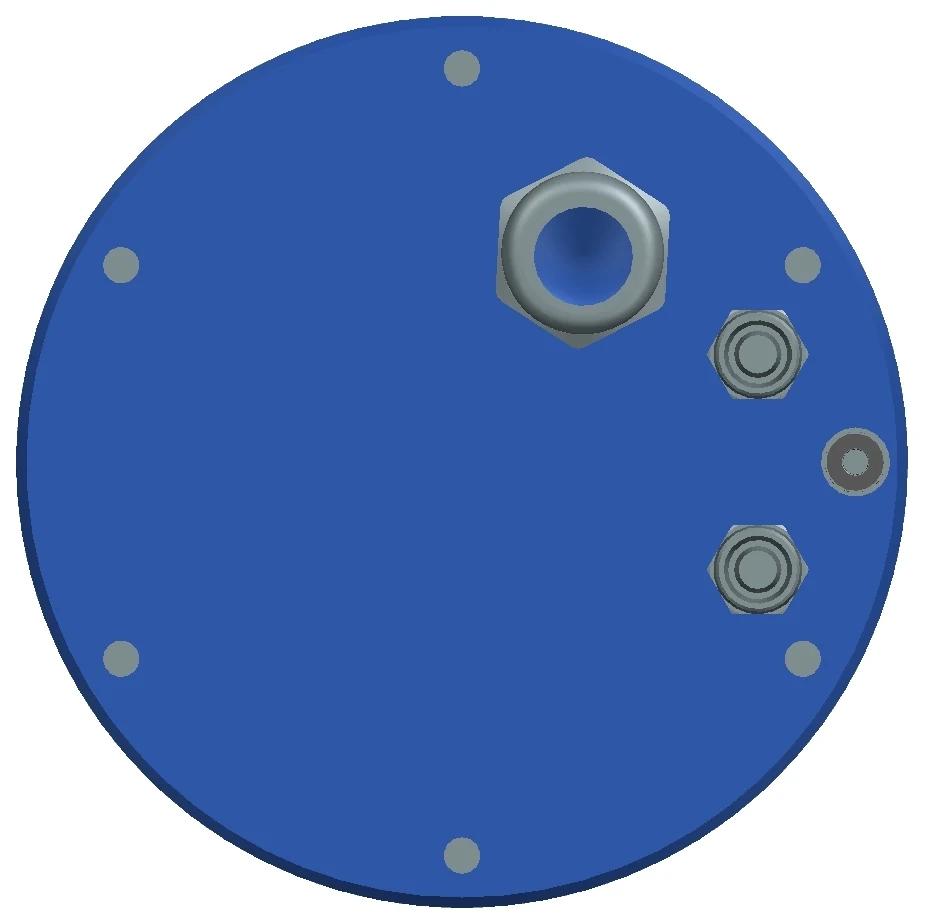

Connection face
Ratings
- Rated speed
- 18,000 rpm
- Rated power
- 16 kW
- Rated torque
- 8.48 N·m
- Rated frequency
- 600 Hz
- Rated voltage
- 380 V
- Rated current
- 32 A
- Motor
- Three-phase AC asynchronous, 4-pole
- Direction of rotation
- Counter-clockwise viewed from the nose
- Lubrication
- Grease
- Cooling
- Closed-loop water (or oil), water preferred
- Sealing
- Labyrinth seal with positive air pressure
- Mounting
- Horizontal
- Power cable
- 3 m
Precision
- Radial runout at nose
- < 2 μm
- Axial runout
- < 1 μm
Bearings & shaft end
- Front
- 7009C / HQ1P4
- Rear
- 7008C / HQ1P4
- Shaft diameter
- Ø25 −0.001 / −0.005
- Thread
- M25×2
- Spigot length
- 39
- Thread length
- 25
Connections
- M32×1.5 power connector
- Cooling 1/4 NPT ×2
- Air seal 1/8 NPT
- Power connector
- M32×1.5, for 4×6 mm² cable
- Cooling
- 1/4 NPT ×2
- Air seal
- 1/8 NPT
Dimensions (mm)
- Body diameter
- Ø170 0 / −0.02
- Flange diameter
- Ø126
- Nose diameter
- Ø43 0 / −0.02
- Overall length
- 382
- Nose projection
- 58
- Flange thickness
- 20
