120HY42Q6
Internal Grinding & Milling Spindles
HOYO Technical Datasheet

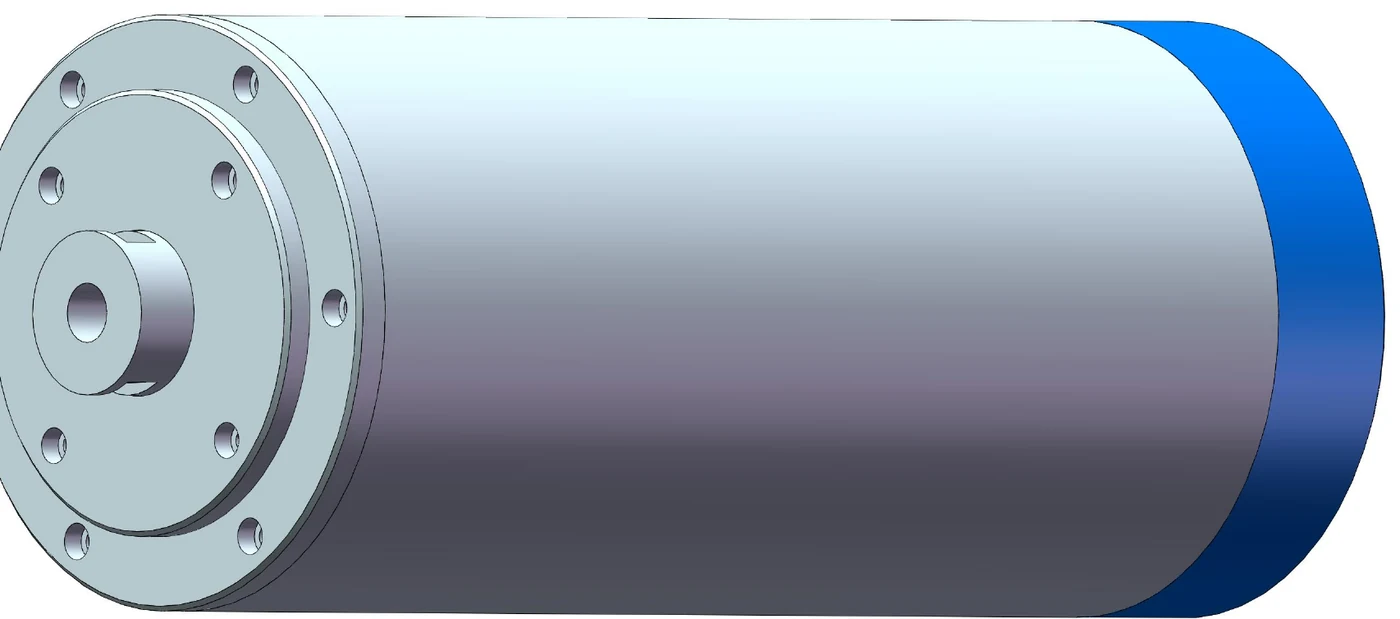

General view
Ratings
- Rated speed
- 42,000 rpm
- Rated power
- 6 kW (S1)
- Rated torque
- 1.3 N·m
- Rated frequency
- 700 Hz
- Rated voltage
- 380 V
- Rated current
- 11 A
- Motor
- Asynchronous, 2-pole
- Lubrication
- Oil-air
- Cooling
- Closed-loop water (or oil)
- Sealing
- Mechanical seal with positive pressure
- Mounting
- Horizontal
- Temperature sensor
- PTC-130
- Encoder
- None
Precision
- Face runout
- ≤ 1 μm
- Radial runout
- ≤ 2 μm
- Vibration severity
- N max below 0.6 mm/s
Bearings & shaft end
- Front
- 7007C / P4 ×2
- Rear
- 7006C / P4 ×2
- Shaft diameter
- Ø12 +0.006 / +0.002
- Thread
- M12×1.5
Connections
- Power supply
- Cooling ports ×2
- Front oil feed
- Rear oil feed
- Oil drain
Dimensions (mm)
- Body diameter
- Ø120 0 / −0.02
- Flange diameter
- Ø90
- Nose diameter
- Ø33
- Overall length
- 298
- Body length
- 278
- Nose projection
- 20
- Register length
- 19
- Flange thickness
- 14
