60HY06Z0.8
Wheel Dressing Spindles
HOYO Technical Datasheet

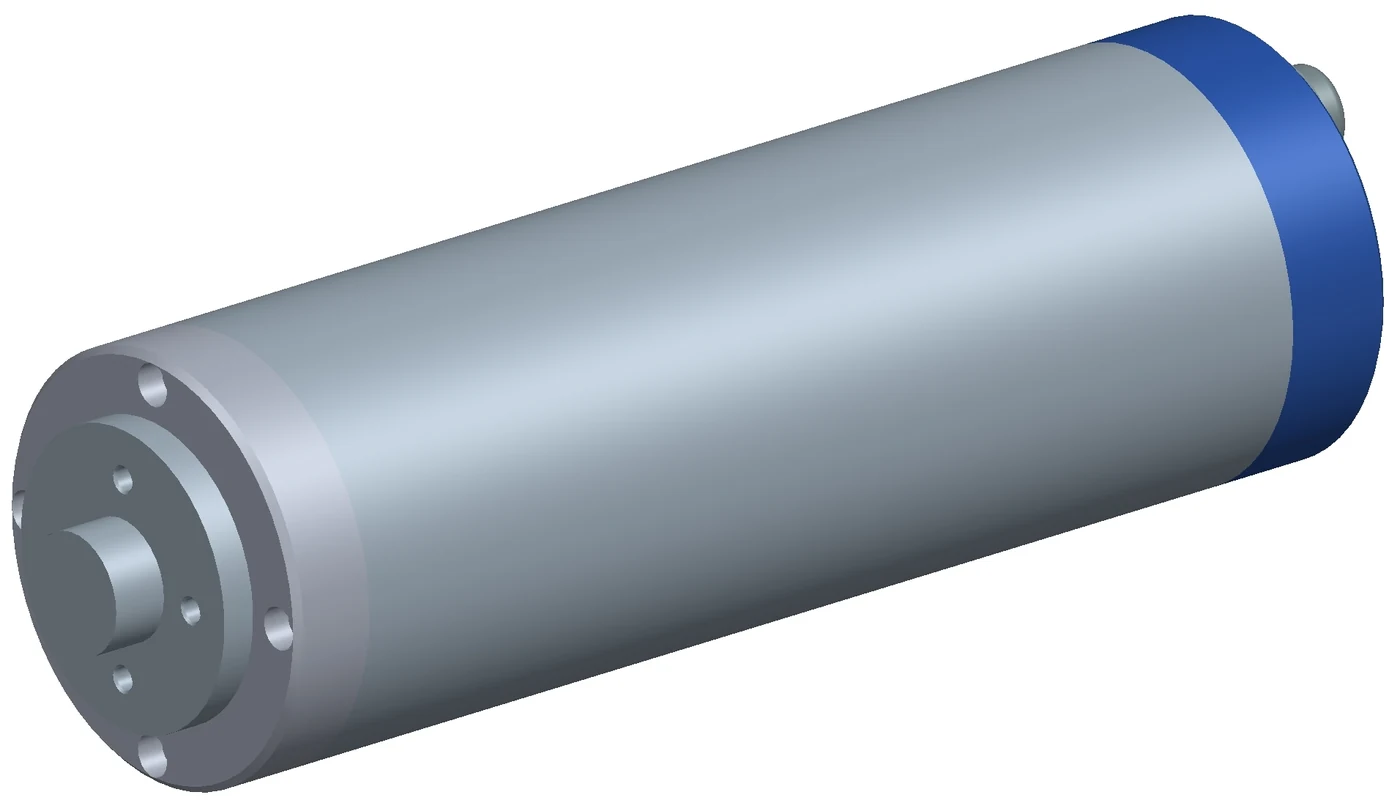

General view
Side

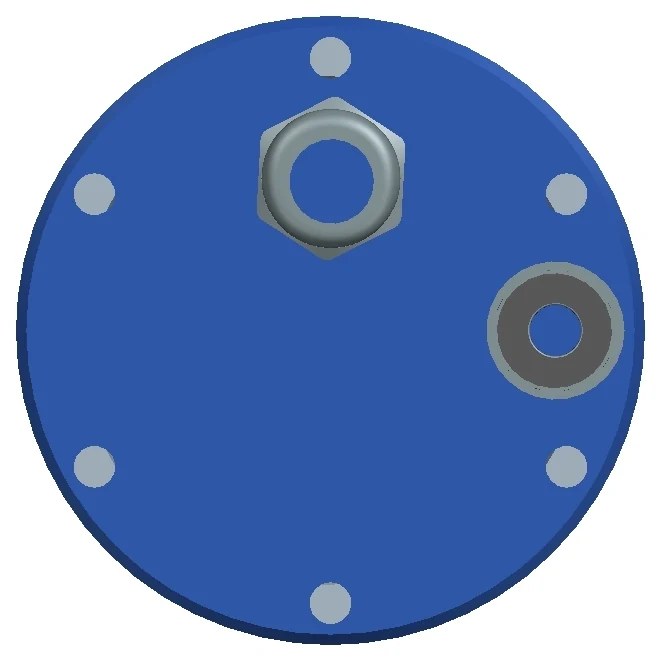

Connection face
Ratings
- Synchronous speed
- 6,000 rpm
- Rated power
- 0.8 kW (S1)
- Rated torque
- 1.3 N·m
- Rated frequency
- 200 Hz
- Rated voltage
- 220 V
- Rated current
- 2.4 A
- Motor
- Three-phase synchronous, 4-pole
- Direction of rotation
- Bidirectional
- Lubrication
- Grease
- Cooling
- Natural air
- Sealing
- Labyrinth seal with air purge
- Mounting
- Horizontal
Bearings & shaft end
- Front
- 71906C / P4 ×2
- Rear
- 7001C / P4 ×2
- Shaft diameter
- Ø17 0 / −0.01
Connections
- M12×1.5 power connector
- 1/8 air seal port
Dimensions (mm)
- Body diameter
- Ø60 0 / −0.01
- Flange diameter
- Ø42
- Rear flange diameter
- Ø28
- Overall length
- 196
- Body length
- 155
- Nose projection
- 13
- Register length
- 8
- Mounting holes
- 4 × M4 × 0.7 depth 12
