170HY03Z18
External Cylindrical Grinding Spindles
HOYO Technical Datasheet

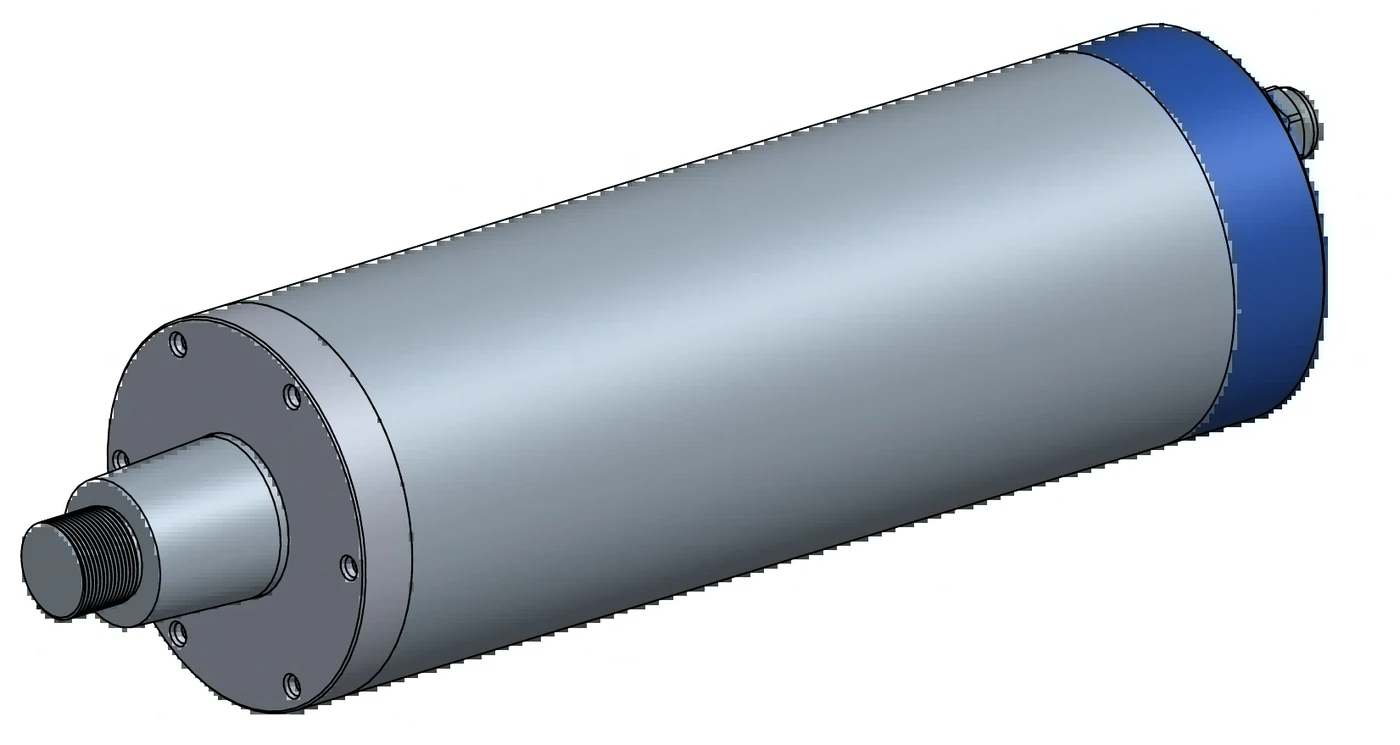

General view
Side
Connection face
Ratings
- Rated speed
- 3,000 rpm
- Rated power
- 18 kW (S1)
- Rated torque
- 57.3 N·m
- Rated frequency
- 200 Hz
- Rated voltage
- 380 V
- Rated current
- 35 A
- Motor
- Three-phase permanent-magnet synchronous, 8-pole
- Lubrication
- Grease
- Cooling
- Closed-loop water (or oil)
- Sealing
- Air purge seal
- Mounting
- Horizontal
Precision
- Axial runout
- ≤ 1 μm
- Radial runout
- ≤ 2 μm
- Vibration severity
- below 0.3 mm/s
Bearings & shaft end
- Front
- 7015C / P4 ×4
- Rear
- 7011C / P4 ×2
- Taper
- 1:10
- Thread
- M42×2
Connections
- Power supply
- Air seal
- Air protection
- System cooling
Dimensions (mm)
- Body diameter
- Ø170 0 / −0.02
- Nose diameter
- Ø70
- Overall length
- 583
- Body length
- 441
- Nose projection
- 66
- Register length
- 62
- Shaft projection
- 32
