110HY12Z2.2
Wheel Dressing Spindles
HOYO Technical Datasheet

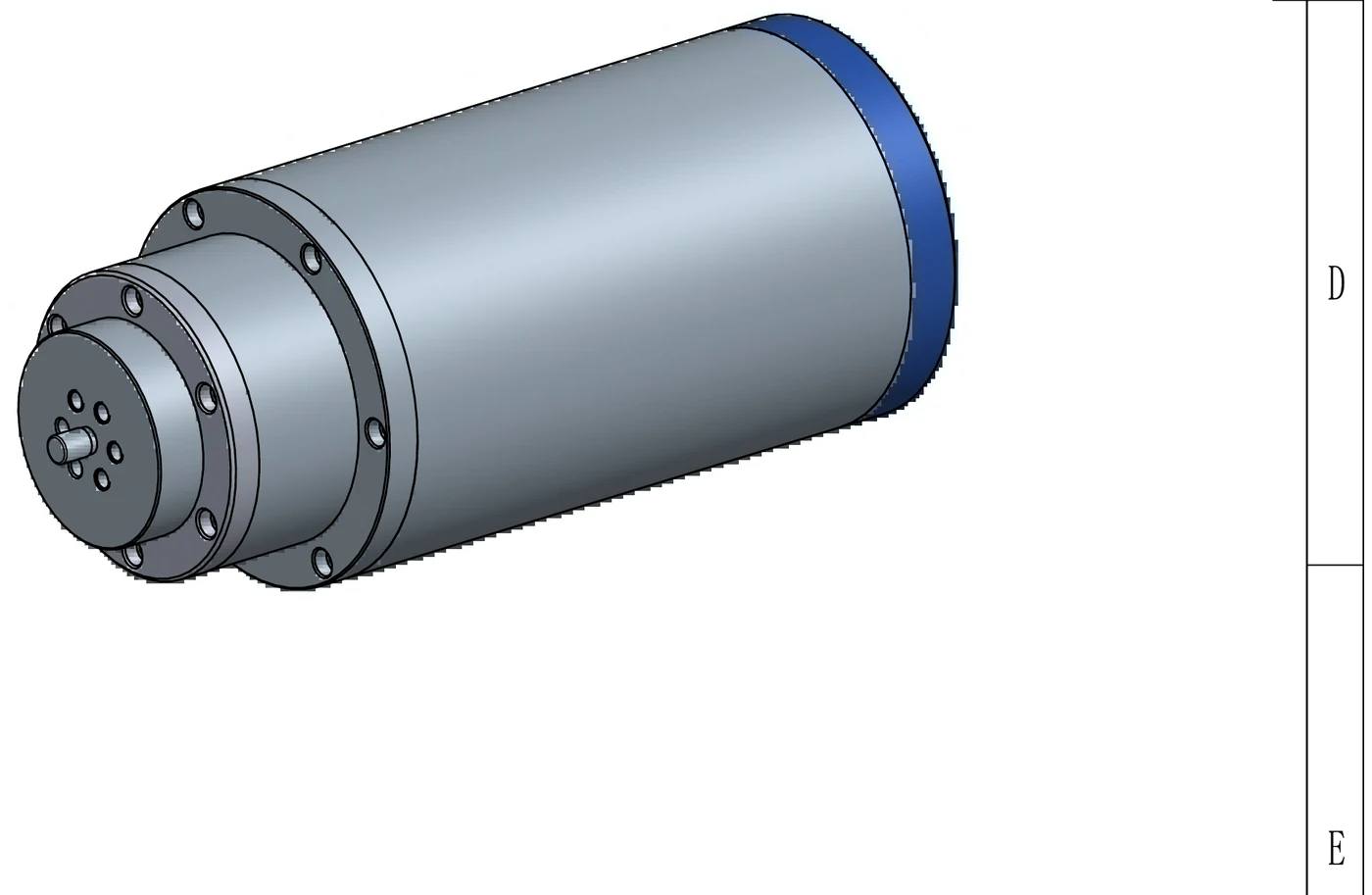

General view
Side
Connection face
Ratings
- Rated speed
- 12,000 rpm
- Rated power
- 2.2 kW (S1)
- Rated torque
- 1.75 N·m
- Rated frequency
- 400 Hz
- Rated voltage
- 380 V
- Rated current
- 4.6 A
- Motor
- Three-phase asynchronous
- Lubrication
- Grease
- Cooling
- Closed-loop water (or oil)
- Sealing
- Air purge seal
- Mounting
- Horizontal
Precision
- Nose face and radial runout
- ≤ 2 μm
- Vibration severity
- N max below 0.6 mm/s
Bearings & shaft end
- Front
- 7008C / P4 ×2
- Rear
- 7005C / P4 ×2
- Shaft diameter
- Ø8 −0.001 / −0.003
Connections
- Power supply
- Air seal
Dimensions (mm)
- Body diameter
- Ø110 0 / −0.02
- Flange diameter
- Ø85
- Nose diameter
- Ø60
- Overall length
- 264
- Body length
- 169
- Nose projection
- 69
- Rear section
- 16
- Mounting holes
- 6 × M6×1.0 depth 15
